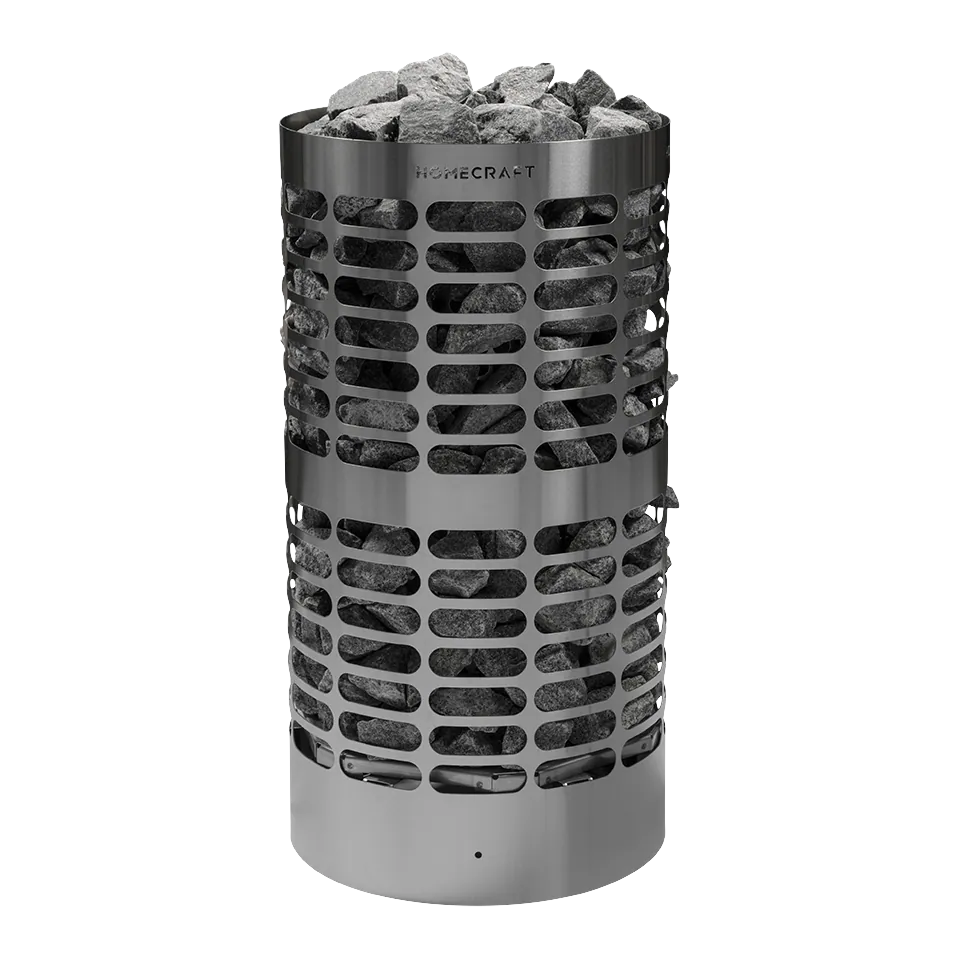

  • Homecraft Apex Electric Sauna Heater — product photo

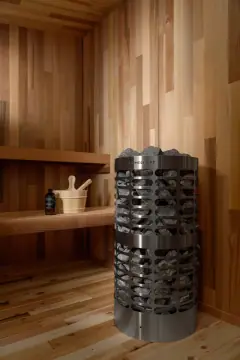

  • Homecraft Apex Electric Sauna Heater — installed in a sauna

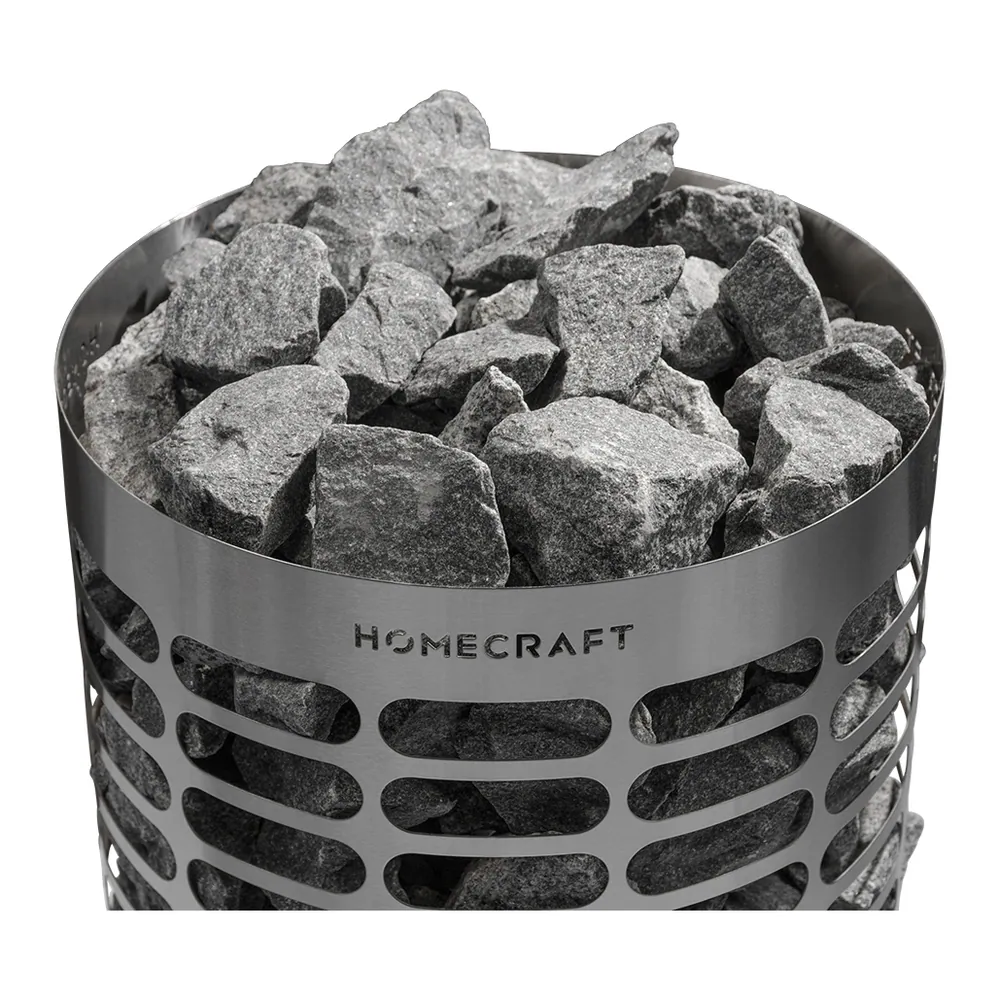

  • Homecraft Apex Electric Sauna Heater — another angle

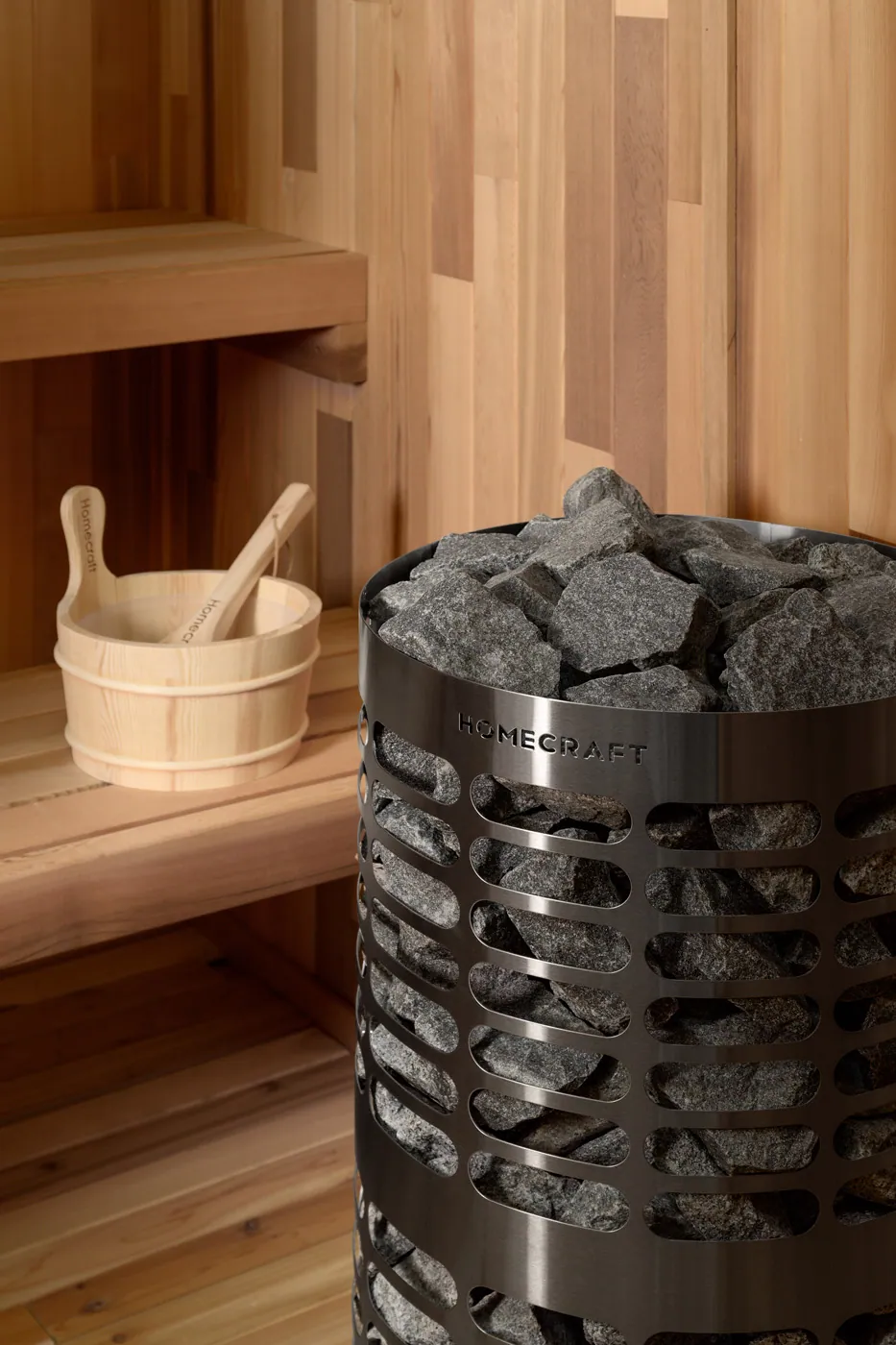

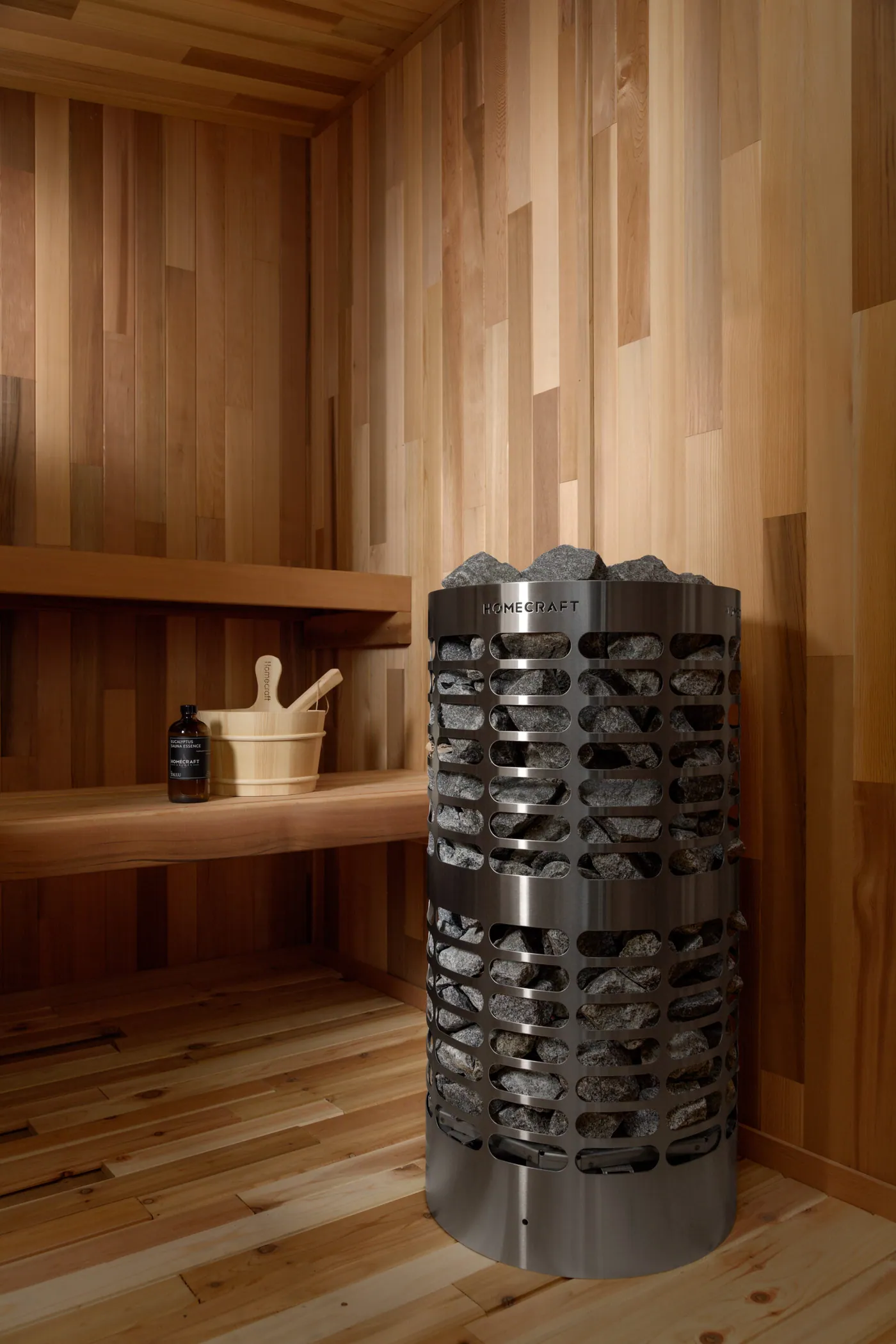

  • Homecraft Apex Electric Sauna Heater — installed in a sauna

Homecraft Electric heater

Homecraft Apex Electric Sauna Heater (10–18 kW)

A Canadian-made stainless tower with 140 kg of rock for big, smooth löyly.

Fits rooms 400–575 cu ft (11.3–16.3 m³), by Homecraft’s rating Glass or stone walls? Use the Heater Finder

240 V · single-phase · 41.7 A · breaker 50 A · 8 AWG (per manufacturer manual)

Control required: choose below

Choose a size 10 kW

Homes: 240 V single-phase

Commercial buildings: 208 V 3-phase

Build your system

Pick what it needs to run, then any extras. Your total updates as you go.

Required to operate

Heater control Choose one

Only Homecraft controls work with Homecraft heaters.

What’s the difference?
  • Homecraft TKE2-2 Digital Sauna Control: Homecraft's standard control for its 240 V heaters up to 10 kW: a digital touchpad plus the relay contactor box that switches the heater. Choose the indoor box or the weatherproof outdoor version.
  • Homecraft TKE2-2 Wi-Fi Sauna Control: The TKE2-2 control system with Homecraft's Wi-Fi touchpad, so you can preheat and check the sauna from your phone. It includes the relay contactor box, in an indoor or weatherproof outdoor version.
  • Indoor setup: The contactor box installs indoors in a dry, protected spot, such as a basement, garage or utility room.
  • Outdoor setup: The contactor box arrives pre-mounted in a weatherproof enclosure, for mounting on the outside of an outdoor or barrel sauna.

How sauna controls and contactor boxes work

Details
Details
Details
Details

Recommended

Sauna stones Choose one

This heater needs about 140 kg (309 lb) of stones, sold separately.

What’s the difference?

Homecraft ties its heater warranty to rocks it sources or provides. Ask us to confirm these rocks before you order.

System total

$2,450.00 CAD before tax

Nothing to pay now. We confirm stock, shipping and your total before you pay. How ordering works

The cart needs JavaScript. Turn it on, or email us at info@lakeshoresaunas.ca to order.

Questions about sizing, wiring or delivery? Email info@lakeshoresaunas.ca Send a message Mon–Fri 9 am–6 pm, Sat 10 am–4 pm ET

Overview

About the Homecraft Apex

The Homecraft Apex electric sauna heater is a stainless steel tower, made in British Columbia, that holds about 140 kg (310 lb) of rock. Its heating elements sit in a protected air chamber, so water you ladle soaks into the rock instead of hitting the elements. The result is strong but smooth löyly without harsh bursts, and elements that are sheltered for a longer life.

Homecraft rates the 240 V models for 400–575 cu ft (10 kW), 450–750 cu ft (12 kW) and 600–950 cu ft (15 kW). The 208 V three-phase versions (12, 15 and 18 kW, up to 1,150 cu ft) are meant for commercial buildings such as gyms and condo amenity rooms. The tower is 18 in across and 36 in tall and needs 5.5 in to combustibles at the sides.

The Apex runs with a Homecraft TKE control and relay box, sold separately: TKE2-2 for the 10 kW, TKE3 for 12 and 15 kW at 240 V, and TKE2-3 or TKE3 for the three-phase models, with a 24-hour TKE24D option for commercial use.

Sizes compared

Every Homecraft Apex size side by side. Pick one to see its full specifications and add-ons.

Size Output Room size Stones Power Price (CAD)
10 kW 10 kW 400–575 cu ft (11.3–16.3 m³) 140 kg 240 V · 41.7 A $2,450.00
12 kW · 208 V 3-phase Commercial 3-phase 12 kW 450–750 cu ft (12.7–21.2 m³) 140 kg 208 V 3-phase · 33.3 A $3,010.00
12 kW 12 kW 450–750 cu ft (12.7–21.2 m³) 140 kg 240 V · 50 A $3,010.00
15 kW · 208 V 3-phase Commercial 3-phase 15 kW 600–950 cu ft (17–26.9 m³) 140 kg 208 V 3-phase · 41.6 A $3,225.00
15 kW 15 kW 600–950 cu ft (17–26.9 m³) 140 kg 240 V · 62.5 A $3,225.00
18 kW · 208 V 3-phase Commercial 3-phase 18 kW 690–1,150 cu ft (19.5–32.6 m³) 140 kg 208 V 3-phase · 50 A $3,540.00

Room sizes are the manufacturer’s ratings; glass, stone or log walls need more power, so check with the Heater Finder. Prices in CAD, before tax.

Specifications

Showing: 10 kW Change

Room size 400–575 cu ft (11.3–16.3 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder.
Heat output 10 kW
Electrical 240 V · single-phase · 41.7 A
Breaker and wire 50 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both.
Control External Homecraft control required (sold separately)
Stones About 140 kg (309 lb) of 7.5–15 cm stones, sold separately
Dimensions Ø 457 × 914 mm (diameter × height) Ø 18 × 36 in (diameter × height)
Weight 24.9 kg (55 lb)
Clearances Sides 140 mm (5.5 in) · ceiling above heater 1,219 mm (48 in) Minimum distances to combustible surfaces, per the manufacturer.
Mounting Floor
Warranty 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft.
Certification CSA certified; UL 875 approved
Made in Canada

What you need to install it

  • Hard-wired to a dedicated double-pole breaker (50–80 A, by model and voltage); your electrician confirms breaker and wire size against the manual.
  • Homecraft controls use a separate relay (contactor) box mounted outside the hot room. Choose the indoor box, or the outdoor-rated box for an outdoor sauna.
  • Keep 5.5 in (140 mm) to combustibles on every side and 48 in (1,219 mm) above to the ceiling; the 18 kW needs a ceiling heat shield under a 7 ft combustible ceiling.

Control: Needs a Homecraft TKE control with its relay box, sold separately: TKE2-2 (10 kW), TKE3 (12–15 kW at 240 V), TKE2-3 or TKE3 (208 V three-phase), or TKE24D for 24-hour commercial use.

Stones: Holds about 140 kg (310 lb) of 7.5–15 cm (3–6 in) igneous rock; Homecraft calls for about 10 boxes. Sold separately.

Wiring and permits

Electric sauna heaters are hard-wired to a dedicated breaker sized in the manual. Have a licensed electrician do the work and get the permit or inspection your province requires. In Ontario that means a Licensed Electrical Contractor, or you in your own home after filing an ESA notification; ask for the ESA Certificate of Acceptance, as your insurer may want it.

Controls for the Homecraft Apex

Homecraft heaters work only with Homecraft controls. The builder above lists the right one for each size; here is every control rated for this heater.

Documents

Manuals and spec sheets from Homecraft.

Documents are hosted by Homecraft and can change without notice; your electrician or installer works from the manual that ships with the product. Need a document in another format? Ask us.

How ordering works

No card details online. You pay only after you have approved a written invoice.

  1. Send your order request

    Add products to your cart and send the request. Nothing is charged, and you’re not committed to buy.

  2. We confirm stock, shipping and your total

    We check availability and shipping to your address, then email a written invoice with every cost, including tax.

  3. You approve the invoice and pay

    Read it, ask questions, then approve and pay by Interac e-Transfer or credit card. Nothing is charged before you say yes.

  4. We ship your order

    In-stock items ship in 3–5 business days after payment; special-order items take 3–6 weeks. We deliver anywhere in Canada.

Homecraft Apex questions

240 V or 208 V three-phase: which do I need?

Most homes have 240 V single-phase service, so choose the 10, 12 or 15 kW 240 V model. The 208 V three-phase models are for commercial buildings that have three-phase power.

What breaker and wire sizes does the Apex need?

Per Homecraft's manual: 10 kW 240 V: 50 A with #8 copper; 12 kW 240 V: 70 A with #6; 15 kW 240 V: 80 A with #6. The 208 V models use 50–60 A with #6 copper. All wiring is 90 °C rated.

How much rock does it hold?

About 140 kg (310 lb). That’s roughly 10 boxes; Homecraft recommends igneous rock 3–6 in across.

Indoor or outdoor control setup: which do I need?

Pick the indoor setup when the relay box will live in a dry, indoor space such as a basement or change room. For an outdoor sauna where the box mounts outside, choose the outdoor setup, which uses an outdoor-rated relay box.
