Homecraft — see all Homecraft heaters Electric heater
Homecraft Revive Electric Sauna Heater (6–9 kW)
A stainless tower for people who like plenty of steam.
Fits rooms 250–300 cu ft (7.1–8.5 m³), by Homecraft’s rating Glass or stone walls? Use the Heater Finder
$1,905.00 CAD before tax
Special order: 3–6 week lead time
240 V · single-phase · 25 A · breaker 40 A · 8 AWG (per manufacturer manual)
Commercial 3-phase power, not for most homes. Most homes have 240 V single-phase power; pick a 240 V size unless your building has 208 V three-phase service.
Control required: choose below
Build your system
Pick what it needs to run, then any extras. Your total updates as you go.
Required to operate
Recommended
Optional
System total
$1,905.00 CAD before tax
Nothing to pay now. We confirm stock, shipping and your total before you pay. How ordering works
The cart needs JavaScript. Turn it on, or email us at info@lakeshoresaunas.ca to order.
- No payment until you approve the invoice Sending an order request doesn’t commit you to buy. — How ordering works
- Manufacturer warranty 2-year manufacturer warranty for residential use. We handle any claim for you. — Warranty details
- Delivery across Canada Ships from our Ontario warehouse. Shipping is quoted on your invoice before you pay. — Shipping and delivery details
Questions about sizing, wiring or delivery? Email info@lakeshoresaunas.ca Send a message Mon–Fri 9 am–6 pm, Sat 10 am–4 pm ET
Overview

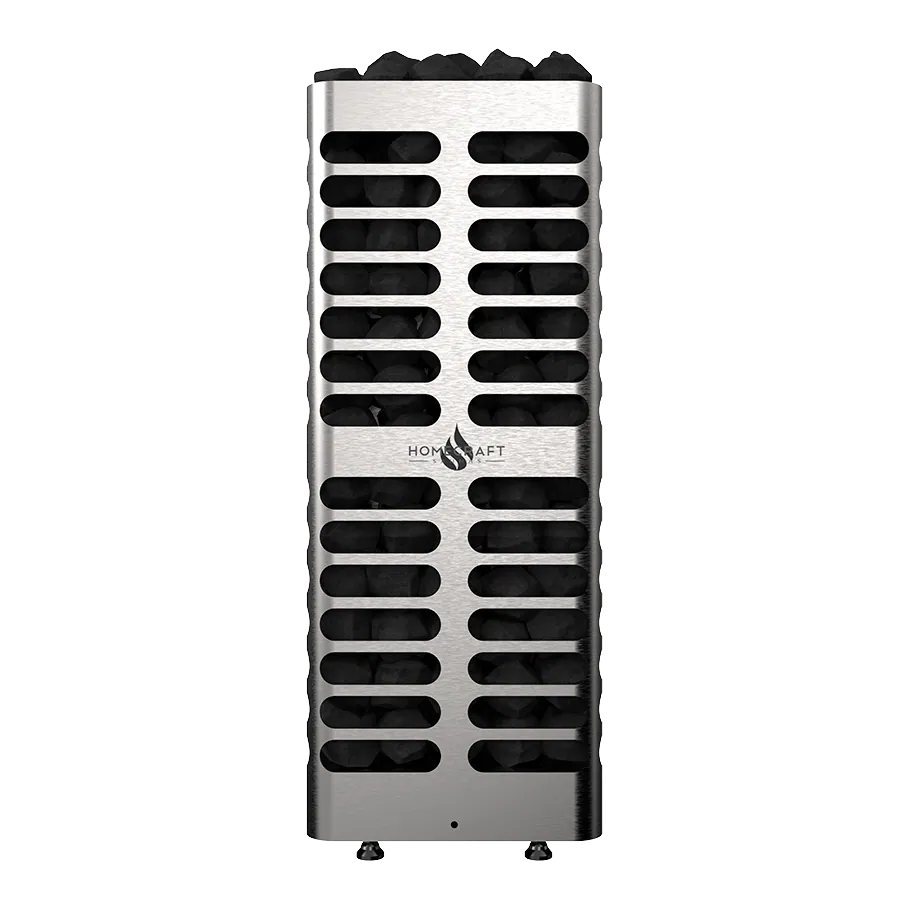

About the Homecraft Revive
The Homecraft Revive electric sauna heater is a tower built for people who like a wet, humid sauna. It holds up to about 90 kg (200 lb) of rock, so you can pour water gradually and keep the löyly coming without the rocks going cold. A free-airflow design pulls air through the rock and shields the heating elements, and the whole unit is 100% stainless steel.
Homecraft rates the 6 kW for 250–300 cu ft, the 7.5 kW for 300–370 cu ft and the 9 kW for 360–450 cu ft, which covers most home saunas. The tower is 14 × 14 in and 36 in tall, leaving wall space free for benches. Homecraft requires its Revive heater guard on every installation; it’s sold separately.
The Revive runs with a Homecraft TKE2-2 control and relay box, sold separately, in indoor or outdoor-rated versions. The TKE2-2 allows room temperatures up to 90 °C (194 °F) with a one-hour run time. The heater is hard-wired at 240 V with #8 copper on a 40 or 50 A breaker, and it needs just 3.5 in to combustibles.
Sizes compared
Every Homecraft Revive size side by side. Pick one to see its full specifications and add-ons.
| Size | Room size | Stones | Power | Price (CAD) | Select |
|---|---|---|---|---|---|
| 6 kW | 250–300 cu ft (7.1–8.5 m³) | 90 kg | 240 V · 25 A | $1,905.00 | |
| 7.5 kW | 300–370 cu ft (8.5–10.5 m³) | 90 kg | 240 V · 31.2 A | $1,935.00 | |
| 9 kW | 360–450 cu ft (10.2–12.7 m³) | 90 kg | 240 V · 37.5 A | $1,985.00 |
Room sizes are the manufacturer’s ratings; glass, stone or log walls need more power, so check with the Heater Finder. Prices in CAD, before tax.
Specifications
Showing: 6 kW Change
| Room size | 250–300 cu ft (7.1–8.5 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder. |
|---|---|
| Heat output | 6 kW |
| Electrical | 240 V · single-phase · 25 A |
| Breaker and wire | 40 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both. |
| Control | External Homecraft control required (sold separately) |
| Stones | About 90 kg (198 lb), sold separately |
| Dimensions | 356 × 356 × 914 mm (W × D × H) 14 × 14 × 36 in (W × D × H) |
| Weight | 20.9 kg (46 lb) |
| Clearances | Sides 89 mm (3.5 in) · ceiling above heater 1,067 mm (42 in) Minimum distances to combustible surfaces, per the manufacturer. |
| Mounting | Floor |
| Warranty | 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft. |
| Certification | CSA certified; UL 875 approved |
| Made in | Canada |
| Room size | 300–370 cu ft (8.5–10.5 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder. |
|---|---|
| Heat output | 7.5 kW |
| Electrical | 240 V · single-phase · 31.2 A |
| Breaker and wire | 40 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both. |
| Control | External Homecraft control required (sold separately) |
| Stones | About 90 kg (198 lb), sold separately |
| Dimensions | 356 × 356 × 914 mm (W × D × H) 14 × 14 × 36 in (W × D × H) |
| Weight | 20.9 kg (46 lb) |
| Clearances | Sides 89 mm (3.5 in) · ceiling above heater 1,067 mm (42 in) Minimum distances to combustible surfaces, per the manufacturer. |
| Mounting | Floor |
| Warranty | 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft. |
| Certification | CSA certified; UL 875 approved |
| Made in | Canada |
| Room size | 360–450 cu ft (10.2–12.7 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder. |
|---|---|
| Heat output | 9 kW |
| Electrical | 240 V · single-phase · 37.5 A |
| Breaker and wire | 50 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both. |
| Control | External Homecraft control required (sold separately) |
| Stones | About 90 kg (198 lb), sold separately |
| Dimensions | 356 × 356 × 914 mm (W × D × H) 14 × 14 × 36 in (W × D × H) |
| Weight | 20.9 kg (46 lb) |
| Clearances | Sides 89 mm (3.5 in) · ceiling above heater 1,067 mm (42 in) Minimum distances to combustible surfaces, per the manufacturer. |
| Mounting | Floor |
| Warranty | 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft. |
| Certification | CSA certified; UL 875 approved |
| Made in | Canada |
What you need to install it
- Hard-wired to a dedicated double-pole breaker (40 A for 6 and 7.5 kW, 50 A for 9 kW); your electrician confirms breaker and wire size against the manual.
- Homecraft controls use a separate relay (contactor) box mounted outside the hot room. Choose the indoor box, or the outdoor-rated box for an outdoor sauna.
- Keep 3.5 in (89 mm) to combustibles and 42 in (1,067 mm) above to the ceiling.
- Homecraft requires its heater guard on every installation, fixed with the screws supplied. It’s sold separately: add the Revive guard below unless you already have one.
Control: Needs a Homecraft TKE2-2 control with its relay box (sold separately), in indoor or outdoor-rated versions.
Stones: Holds up to about 90 kg (200 lb) of rock. Sold separately.
Wiring and permits
Electric sauna heaters are hard-wired to a dedicated breaker sized in the manual. Have a licensed electrician do the work and get the permit or inspection your province requires. In Ontario that means a Licensed Electrical Contractor, or you in your own home after filing an ESA notification; ask for the ESA Certificate of Acceptance, as your insurer may want it.
Controls for the Homecraft Revive
Homecraft heaters work only with Homecraft controls. The builder above lists the right one for each size; here is every control rated for this heater.
Documents
Manuals and spec sheets from Homecraft.
Documents are hosted by Homecraft and can change without notice; your electrician or installer works from the manual that ships with the product. Need a document in another format? Ask us.
How ordering works
No card details online. You pay only after you have approved a written invoice.
-
Step 1: Send your order request
Add products to your cart and send the request. Nothing is charged, and you’re not committed to buy.
-
Step 2: We confirm stock, shipping and your total
We check availability and shipping to your address, then email a written invoice with every cost, including tax.
-
Step 3: You approve the invoice and pay
Read it, ask questions, then approve and pay by Interac e-Transfer or credit card. Nothing is charged before you say yes.
-
Step 4: We ship your order
In-stock items ship in 3–5 business days after payment; special-order items take 3–6 weeks. We deliver anywhere in Canada.
Homecraft Revive questions
Revive or Apex Mini?
Both are Canadian-made towers for similar room sizes. The Revive is 36 in tall and holds up to about 200 lb of rock; the Apex Mini is 32 in tall with the Apex's protected element chamber.
What breaker and wire does it need?
240 V single-phase with #8 copper rated 90 °C: a 40 A breaker for the 6 and 7.5 kW and 50 A for the 9 kW, per Homecraft.
Indoor or outdoor control setup: which do I need?
Pick the indoor setup when the relay box will live in a dry, indoor space such as a basement or change room. For an outdoor sauna where the box mounts outside, choose the outdoor setup, which uses an outdoor-rated relay box.
Can I use a Harvia or HUUM control with it?
No. Homecraft heaters work only with Homecraft TKE controls; controls from other brands use different sensors and wiring.
