Homecraft H-Series Electric Sauna Heater (6–9 kW)
Homecraft's classic wall heater: quick heat, simple layout.
Fits rooms 250–300 cu ft (7.1–8.5 m³), by Homecraft’s rating Glass or stone walls? Use the Heater Finder
$1,235.00 CAD before tax
Special order: 3–6 week lead time
240 V · single-phase · 25 A · breaker 40 A · 8 AWG (per manufacturer manual)
Commercial 3-phase power, not for most homes. Most homes have 240 V single-phase power; pick a 240 V size unless your building has 208 V three-phase service.
Control required: choose below
Build your system
Pick what it needs to run, then any extras. Your total updates as you go.
Required to operate
Recommended
System total
$1,235.00 CAD before tax
Nothing to pay now. We confirm stock, shipping and your total before you pay. How ordering works
The cart needs JavaScript. Turn it on, or email us at info@lakeshoresaunas.ca to order.
- No payment until you approve the invoice Sending an order request doesn’t commit you to buy. — How ordering works
- Manufacturer warranty 2-year manufacturer warranty for residential use. We handle any claim for you. — Warranty details
- Delivery across Canada Ships from our Ontario warehouse. Shipping is quoted on your invoice before you pay. — Shipping and delivery details
Questions about sizing, wiring or delivery? Email info@lakeshoresaunas.ca Send a message Mon–Fri 9 am–6 pm, Sat 10 am–4 pm ET
Overview
About the Homecraft H-Series

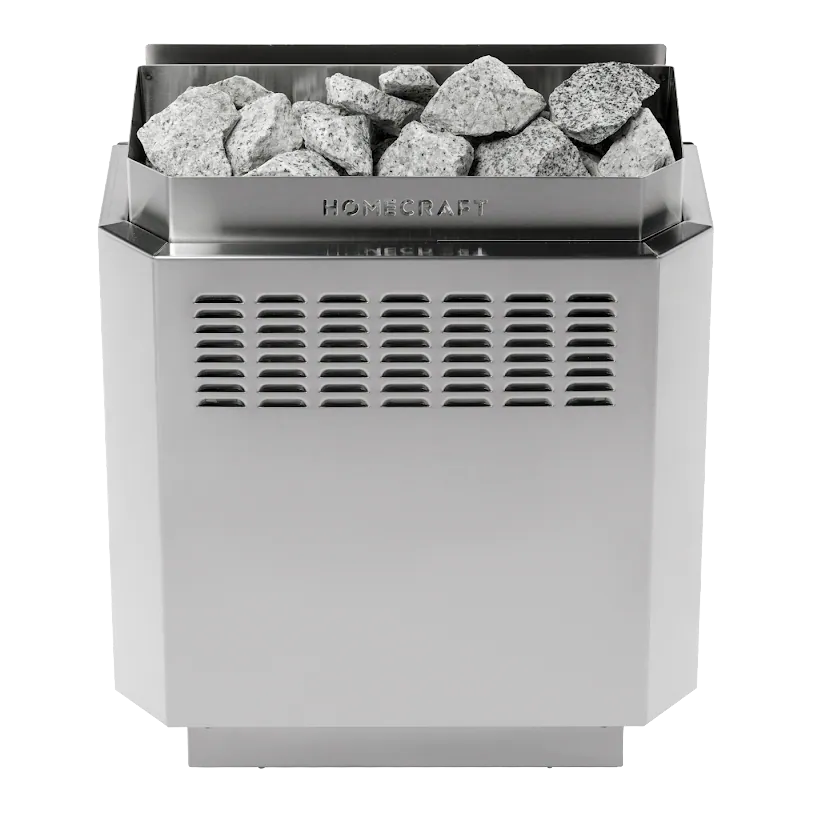

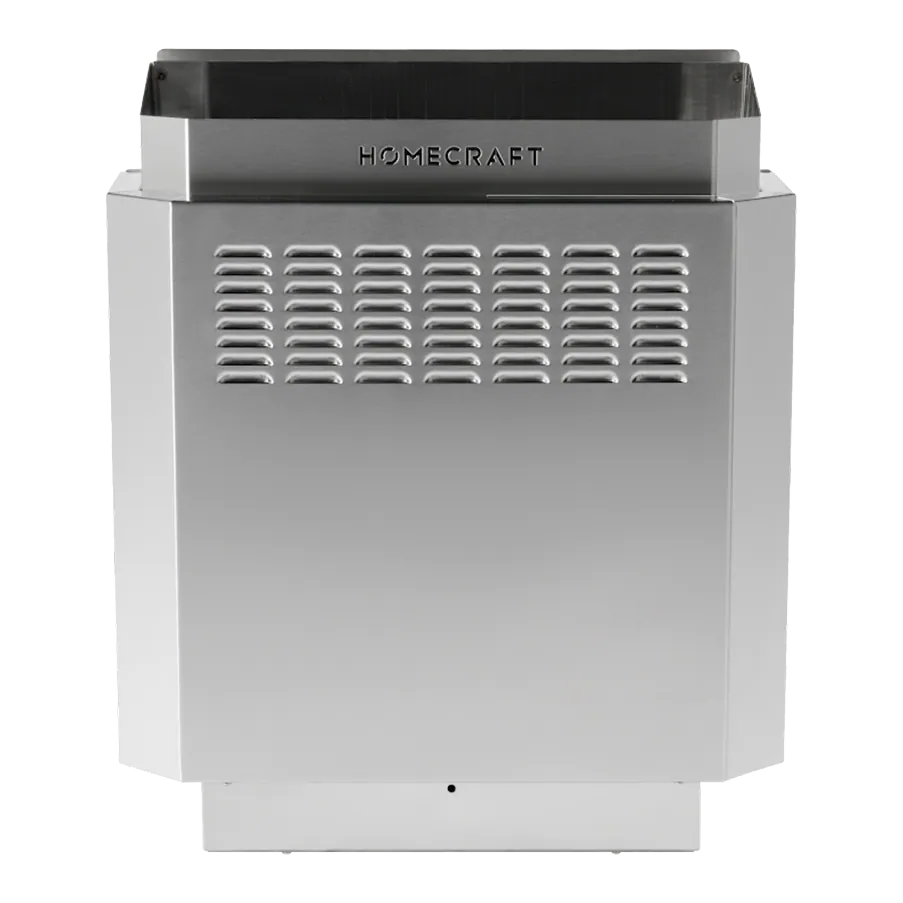

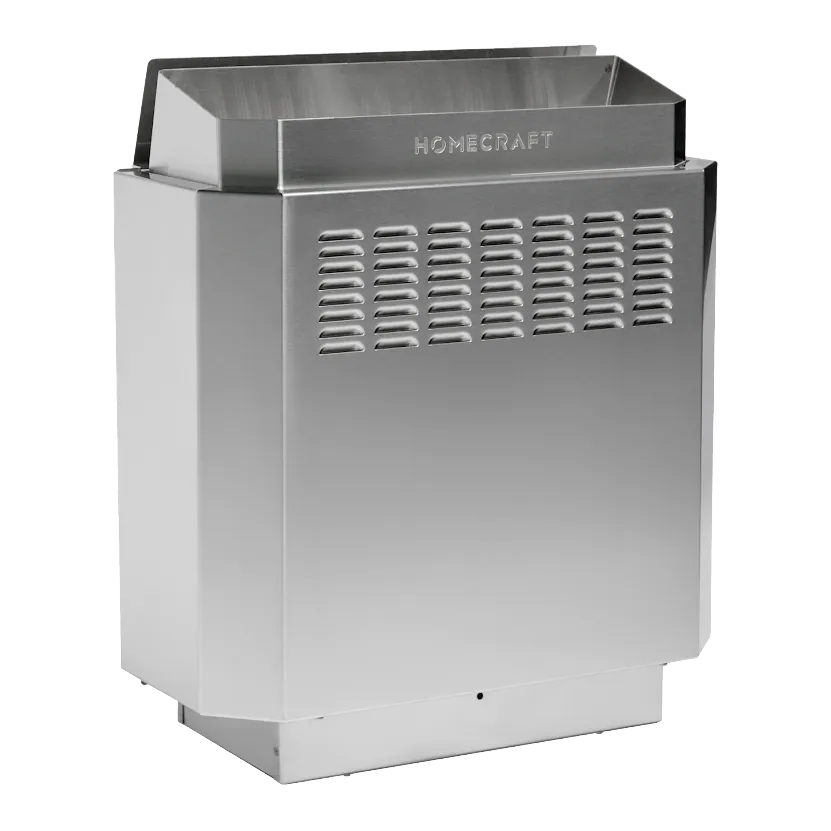

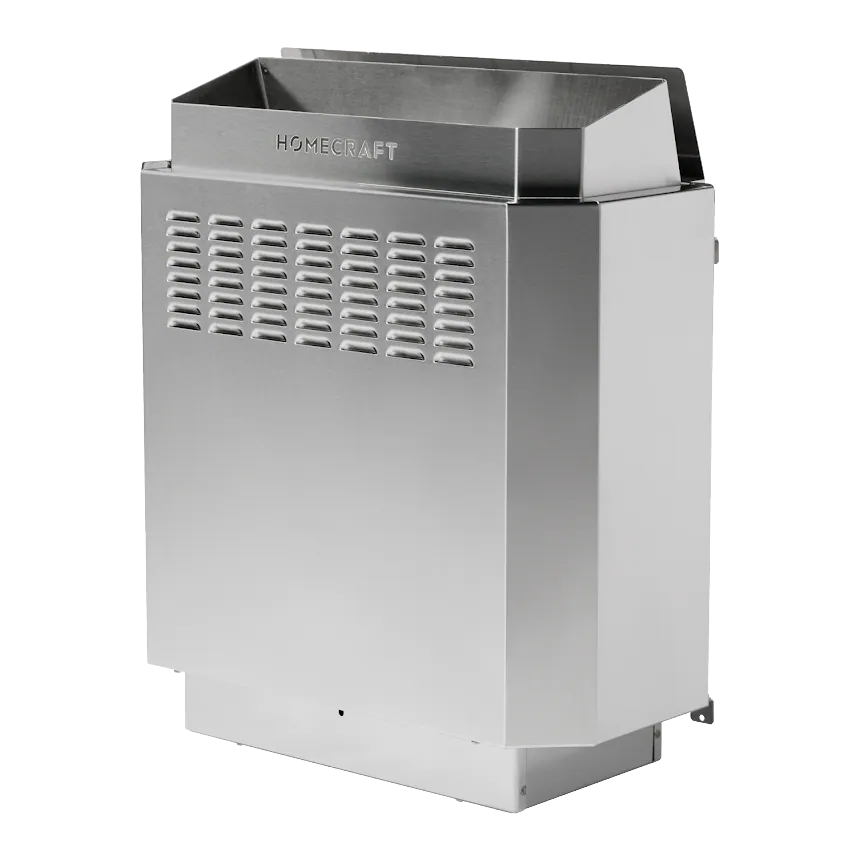

The Homecraft H-Series electric sauna heater is built for people who want the room hot, fast. Instead of a deep tower of rock, it uses a shallow, efficient rock bed of about 20 kg (44 lb) that lets air move freely, and Homecraft says most rooms reach temperature in about 20–30 minutes. You can still ladle water for steam whenever you want more humidity.
Homecraft's manual rates the 6 kW for 250–300 cu ft, the 7.5 kW for 300–370 cu ft and the 9 kW for 360–450 cu ft. It mounts on the wall and measures about 20 in wide, 12.5 in deep and 24 in tall, which makes it a natural fit for traditional indoor rooms and barrel saunas. Stainless inner and outer baffles spread the heat and protect the internals.
The H-Series runs with a Homecraft TKE2-2 control and relay box, sold separately, in indoor or outdoor-rated versions. It's hard-wired at 240 V with #8 copper on a 40 A (6 and 7.5 kW) or 50 A (9 kW) breaker. Keep 4 in to combustibles at the sides and 42 in above to the ceiling.
Sizes compared
Every Homecraft H-Series size side by side. Pick one to see its full specifications and add-ons.
| Size | Room size | Stones | Power | Price (CAD) | Select |
|---|---|---|---|---|---|
| 6 kW | 250–300 cu ft (7.1–8.5 m³) | 20 kg | 240 V · 25 A | $1,235.00 | |
| 7.5 kW | 300–370 cu ft (8.5–10.5 m³) | 20 kg | 240 V · 31.2 A | $1,260.00 | |
| 9 kW | 360–450 cu ft (10.2–12.7 m³) | 20 kg | 240 V · 37.5 A | $1,290.00 |
Room sizes are the manufacturer’s ratings; glass, stone or log walls need more power, so check with the Heater Finder. Prices in CAD, before tax.
Specifications
Showing: 6 kW Change
| Room size | 250–300 cu ft (7.1–8.5 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder. |
|---|---|
| Heat output | 6 kW |
| Electrical | 240 V · single-phase · 25 A |
| Breaker and wire | 40 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both. |
| Control | External Homecraft control required (sold separately) |
| Stones | About 20 kg (44 lb), sold separately |
| Dimensions | 508 × 318 × 610 mm (W × D × H) 20 × 12.5 × 24 in (W × D × H) |
| Weight | 19 kg (42 lb) |
| Clearances | Sides 102 mm (4 in) · ceiling above heater 1,067 mm (42 in) Minimum distances to combustible surfaces, per the manufacturer. |
| Mounting | Wall |
| Warranty | 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft. |
| Certification | CSA certified |
| Made in | Canada |
| Room size | 300–370 cu ft (8.5–10.5 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder. |
|---|---|
| Heat output | 7.5 kW |
| Electrical | 240 V · single-phase · 31.2 A |
| Breaker and wire | 40 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both. |
| Control | External Homecraft control required (sold separately) |
| Stones | About 20 kg (44 lb), sold separately |
| Dimensions | 508 × 318 × 610 mm (W × D × H) 20 × 12.5 × 24 in (W × D × H) |
| Weight | 19 kg (42 lb) |
| Clearances | Sides 102 mm (4 in) · ceiling above heater 1,067 mm (42 in) Minimum distances to combustible surfaces, per the manufacturer. |
| Mounting | Wall |
| Warranty | 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft. |
| Certification | CSA certified |
| Made in | Canada |
| Room size | 360–450 cu ft (10.2–12.7 m³) Homecraft’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder. |
|---|---|
| Heat output | 9 kW |
| Electrical | 240 V · single-phase · 37.5 A |
| Breaker and wire | 50 A breaker · 8 AWG copper wire Per the manufacturer’s manual. Your electrician confirms both. |
| Control | External Homecraft control required (sold separately) |
| Stones | About 20 kg (44 lb), sold separately |
| Dimensions | 508 × 318 × 610 mm (W × D × H) 20 × 12.5 × 24 in (W × D × H) |
| Weight | 19 kg (42 lb) |
| Clearances | Sides 102 mm (4 in) · ceiling above heater 1,067 mm (42 in) Minimum distances to combustible surfaces, per the manufacturer. |
| Mounting | Wall |
| Warranty | 2-year manufacturer warranty for residential use. A licensed electrician must install the heater for the warranty to apply. Heating elements are consumable parts and aren’t covered, per Homecraft. |
| Certification | CSA certified |
| Made in | Canada |
What you need to install it
- Hard-wired to a dedicated double-pole breaker (40 A for 6 and 7.5 kW, 50 A for 9 kW); your electrician confirms breaker and wire size against the manual.
- Homecraft controls use a separate relay (contactor) box mounted outside the hot room. Choose the indoor box, or the outdoor-rated box for an outdoor sauna.
- Keep 4 in (102 mm) to combustibles at the sides and 42 in (1,067 mm) above to the ceiling; Homecraft lists a 78 in minimum ceiling height.
Control: Needs a Homecraft TKE2-2 control with its relay box (sold separately), in indoor or outdoor-rated versions.
Stones: Holds about 20 kg (44 lb) of rock. Sold separately.
Wiring and permits
Electric sauna heaters are hard-wired to a dedicated breaker sized in the manual. Have a licensed electrician do the work and get the permit or inspection your province requires. In Ontario that means a Licensed Electrical Contractor, or you in your own home after filing an ESA notification; ask for the ESA Certificate of Acceptance, as your insurer may want it.
Controls for the Homecraft H-Series
Homecraft heaters work only with Homecraft controls. The builder above lists the right one for each size; here is every control rated for this heater.
Documents
Manuals and spec sheets from Homecraft.
Documents are hosted by Homecraft and can change without notice; your electrician or installer works from the manual that ships with the product. Need a document in another format? Ask us.
How ordering works
No card details online. You pay only after you have approved a written invoice.
-
Step 1: Send your order request
Add products to your cart and send the request. Nothing is charged, and you’re not committed to buy.
-
Step 2: We confirm stock, shipping and your total
We check availability and shipping to your address, then email a written invoice with every cost, including tax.
-
Step 3: You approve the invoice and pay
Read it, ask questions, then approve and pay by Interac e-Transfer or credit card. Nothing is charged before you say yes.
-
Step 4: We ship your order
In-stock items ship in 3–5 business days after payment; special-order items take 3–6 weeks. We deliver anywhere in Canada.
Homecraft H-Series questions
Can I still make steam with a shallow rock bed?
Yes. The H-Series is designed mainly for dry heat and fast warm-up, but you can ladle water on the rocks for löyly. For heavier, longer steam, look at the Revive tower.
What size do I need?
Per Homecraft's manual: 6 kW for 250–300 cu ft, 7.5 kW for 300–370 cu ft and 9 kW for 360–450 cu ft.
Indoor or outdoor control setup: which do I need?
Pick the indoor setup when the relay box will live in a dry, indoor space such as a basement or change room. For an outdoor sauna where the box mounts outside, choose the outdoor setup, which uses an outdoor-rated relay box.
Can I use a Harvia or HUUM control with it?
No. Homecraft heaters work only with Homecraft TKE controls; controls from other brands use different sensors and wiring.
