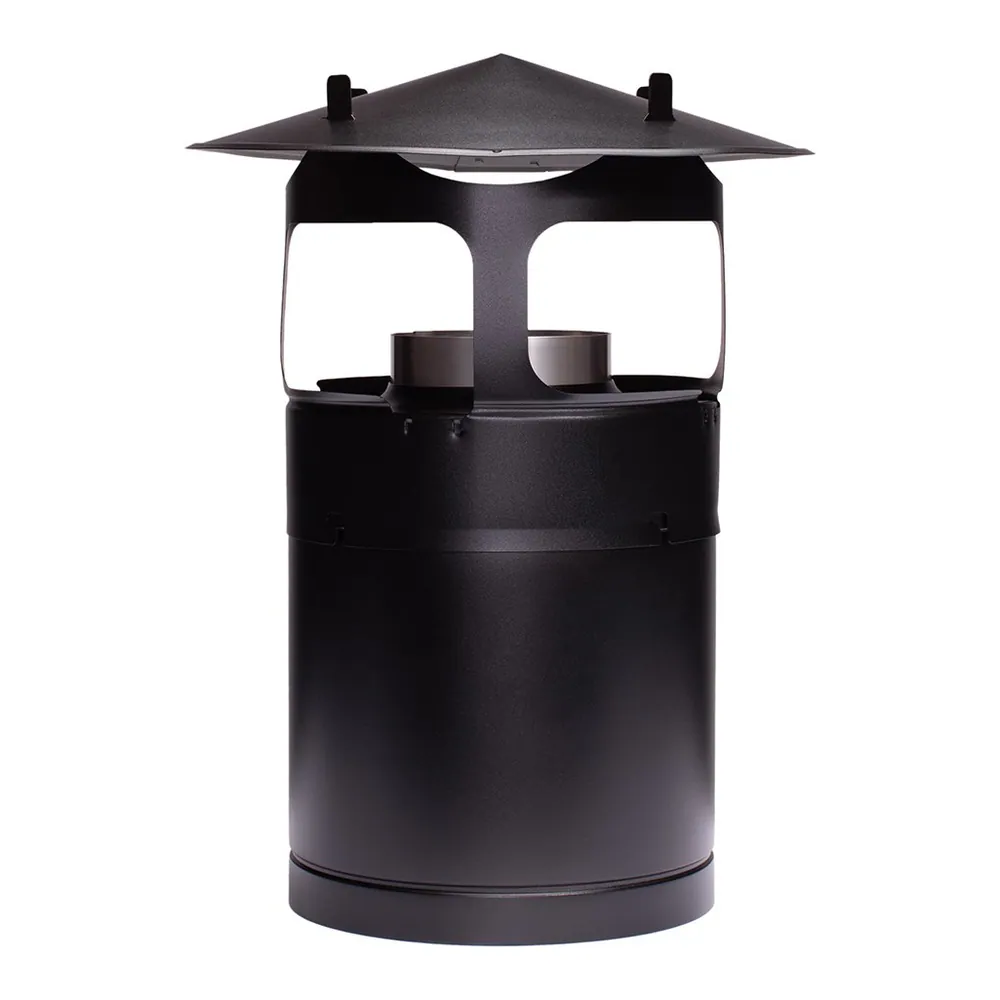

  • Narvi Standard Chimney Flue Kit — product photo

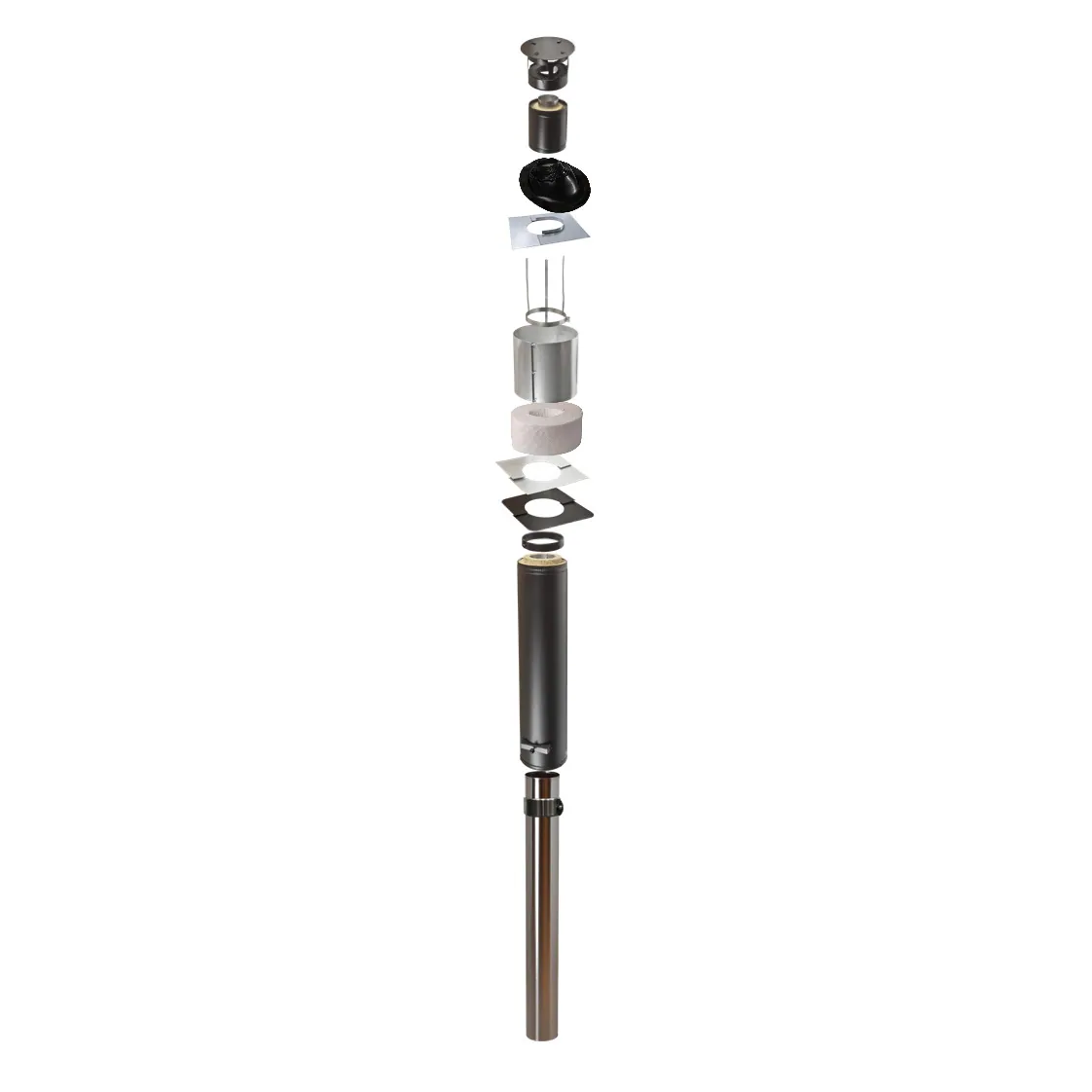

  • Narvi Standard Chimney Flue Kit — dimensions diagram

Narvi Chimney & flue

Narvi Standard Chimney Flue Kit

Narvi's insulated steel sauna chimney (the Kota steel flue), sold as a complete kit with the start pipe, damper and roof parts.

Available to order. We confirm stock before you pay.

Fits: Narvi Inari, Narvi Kuru, Narvi Luosto and 5 more. See the full list

Nothing to pay now. We confirm stock, shipping and your total before you pay. How ordering works

The cart needs JavaScript. Turn it on, or email us at info@lakeshoresaunas.ca to order.

Questions about fit or installation? Email info@lakeshoresaunas.ca Send a message Mon–Fri 9 am–6 pm, Sat 10 am–4 pm ET

Fits these heaters

For Narvi wood-burning stoves with a 119 mm flue outlet; with this kit, the 4.5-inch to 6-inch adapter isn't needed.

Overview

Details

Narvi designed this chimney with extra attention to fire safety and insulation where the flue passes through the ceiling. The kit has 1.5 m of insulated flue (a 1.2 m section with a built-in damper and a 0.3 m section), a 1 m stainless start pipe for stoves with a 119 mm outlet, the ceiling feedthrough parts and the roof seal and rain cover. The black outer casing is 255 mm across, with a 125 mm stainless inner flue and mineral wool insulation. Extensions of 300, 600 and 1,200 mm bring it to the height you need.

Specifications
Insulated section 1,500 mm (1,200 mm damper section + 300 mm)
Start pipe 1,000 mm stainless, 120/122 mm
Outer diameter 255 mm
Inner flue diameter 125 mm
Main kit height About 2,500 mm
Clearance to combustibles 7 cm (insulated parts), 70 cm (uninsulated start pipe), per Narvi
Fire rating CE-marked to fire safety class T600, per Narvi

Questions

What's in the kit?

Per Narvi: the 1,200 mm insulated damper section and 300 mm flue section, a 1,000 mm stainless start pipe, a fastening ring, a 0–22° feedthrough flange, a vapour barrier flange with tape, 200 mm feedthrough insulation, a 400 mm feedthrough cover, a carrier ring with perforated band, a base support, the roof's rubber seal and the rain cover.

Is this chimney part approved where I live?

Chimney and flue requirements depend on your installation and local code, and many insurers ask for a WETT inspection. Confirm your chimney plan with your building department or a WETT-certified inspector before you order.
