KIVI-IKI Wood-Burning Sauna Stove

Overview

About the KIVI-IKI

KIVI-IKI started with one idea: bring living fire into the sauna. Designed by dSign Vertti Kivi & Co. together with IKI, it pairs IKI's stainless steel stone mesh with a large glass door, 36 cm wide and 47.5 cm high, so the fire's natural glow and movement light up the room. It's made from the same durable materials as every IKI stove.

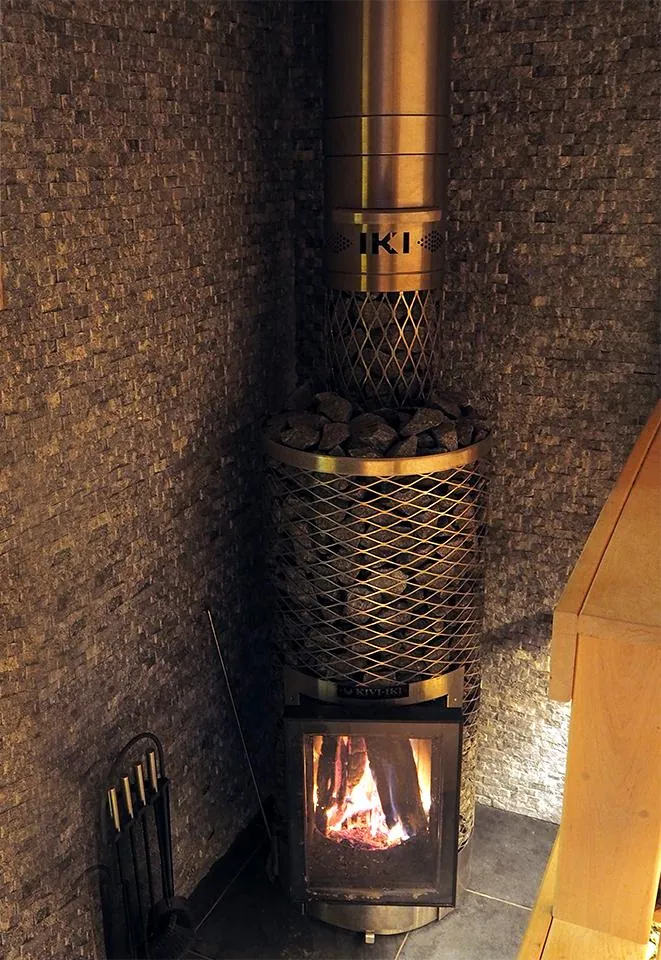

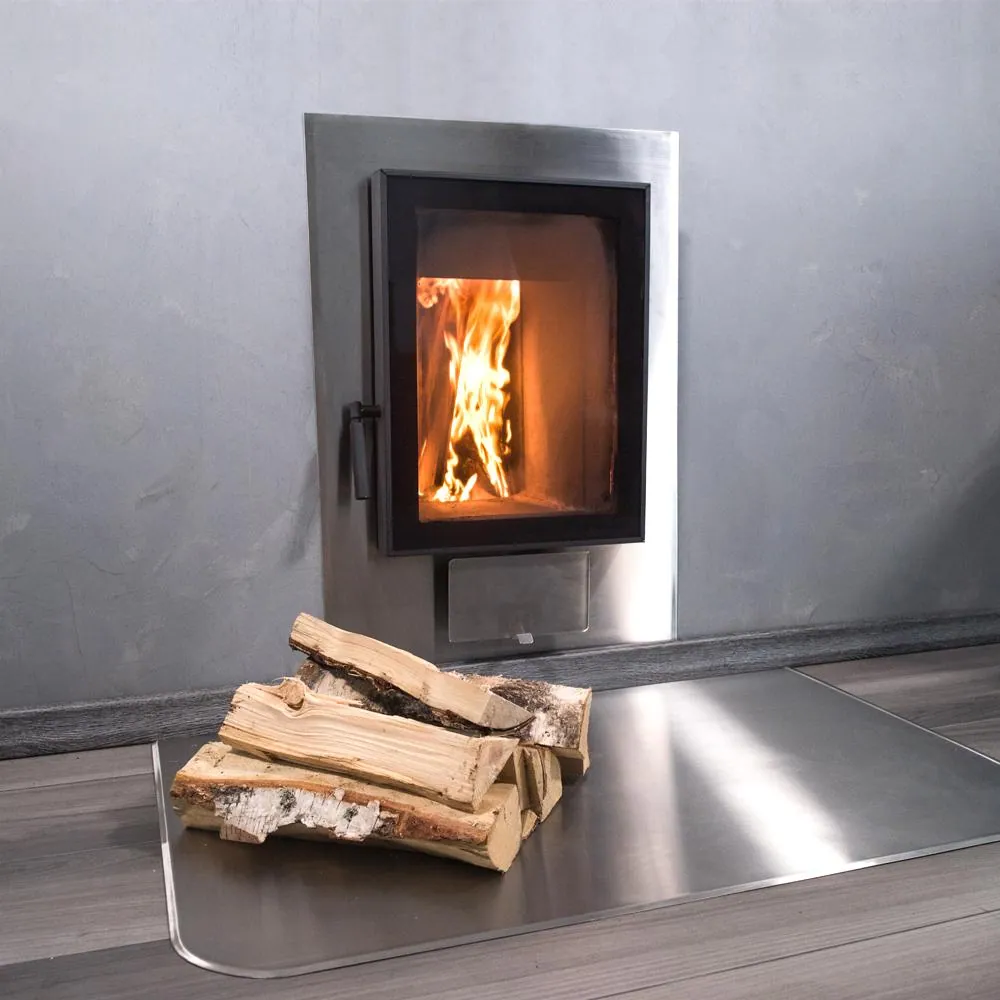

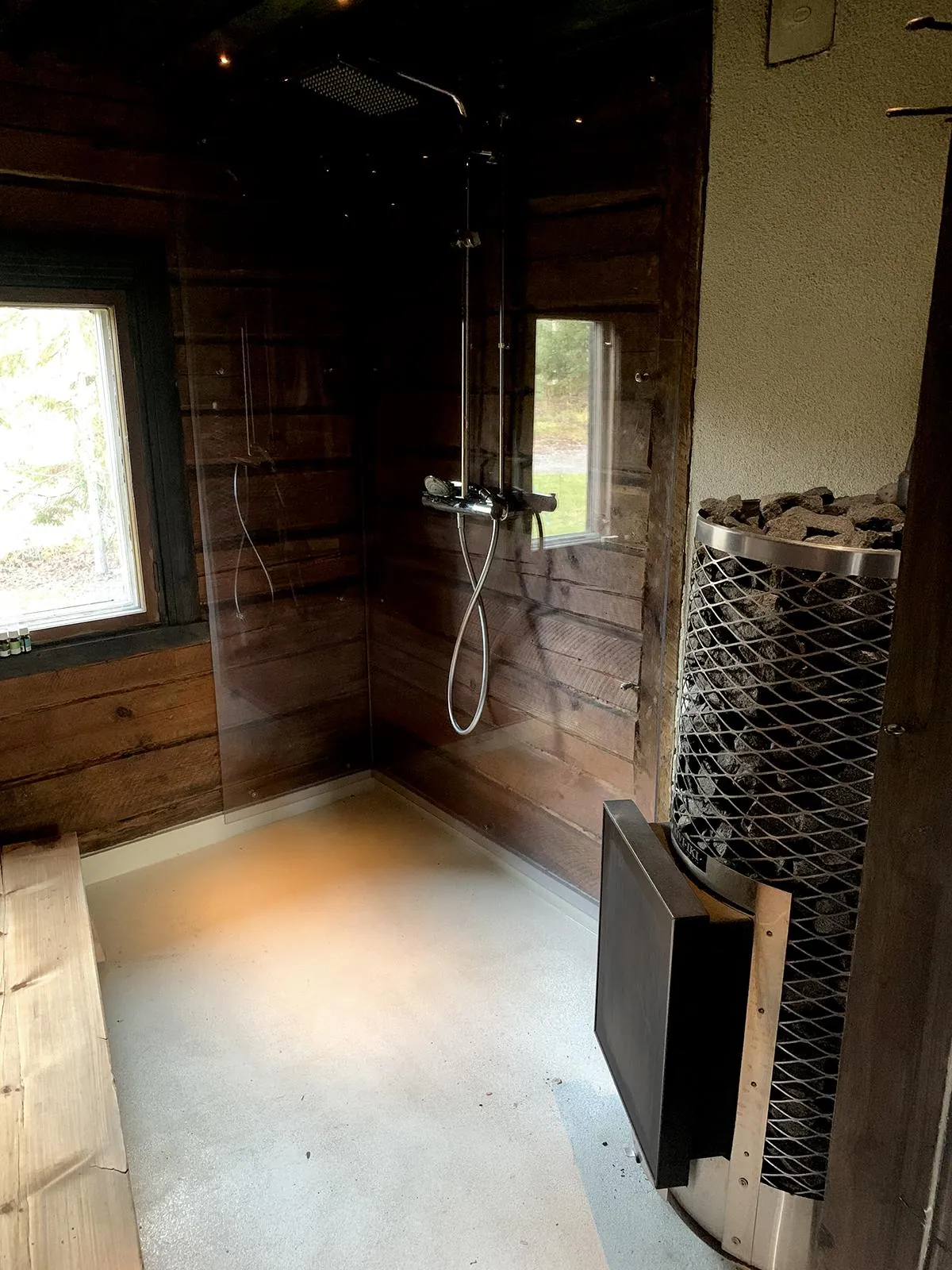

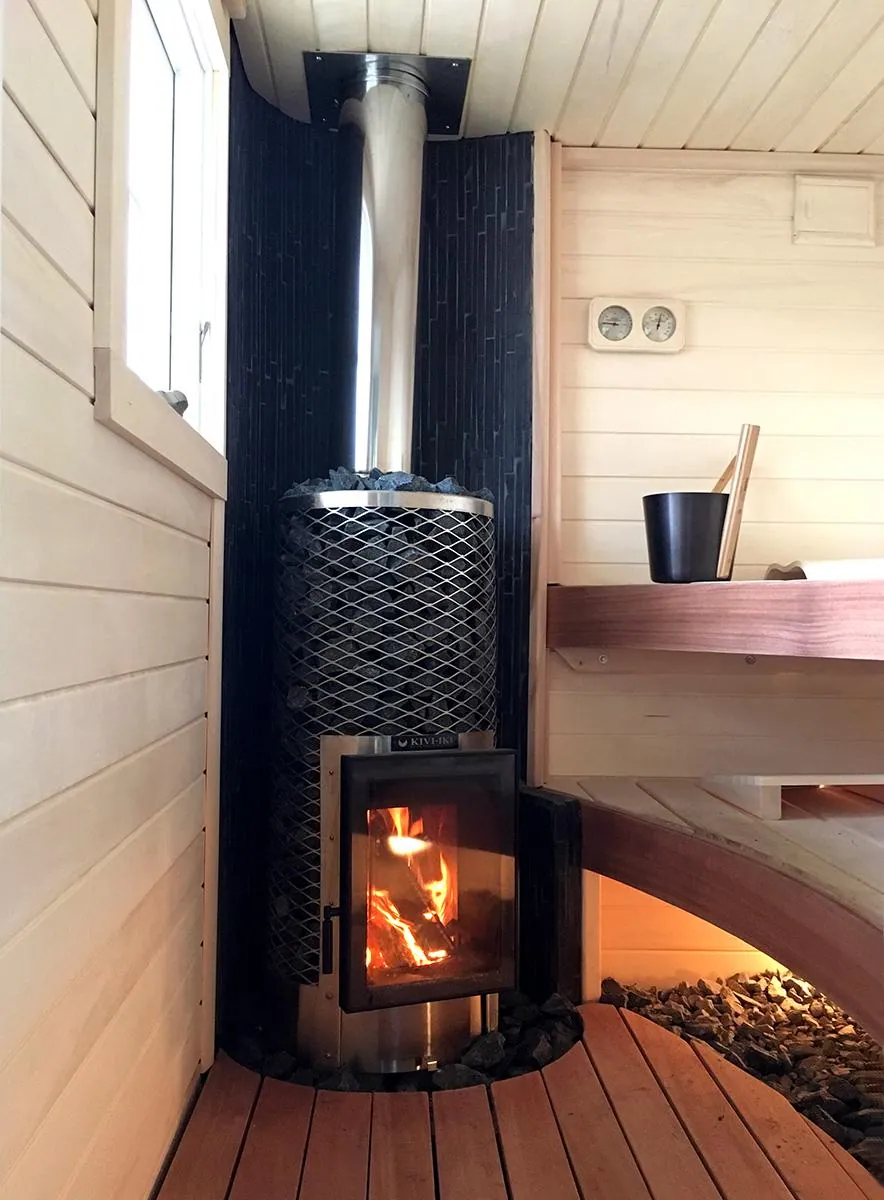

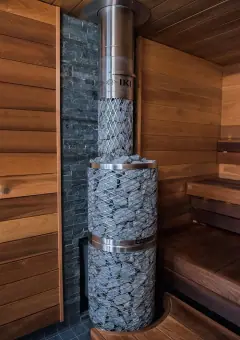

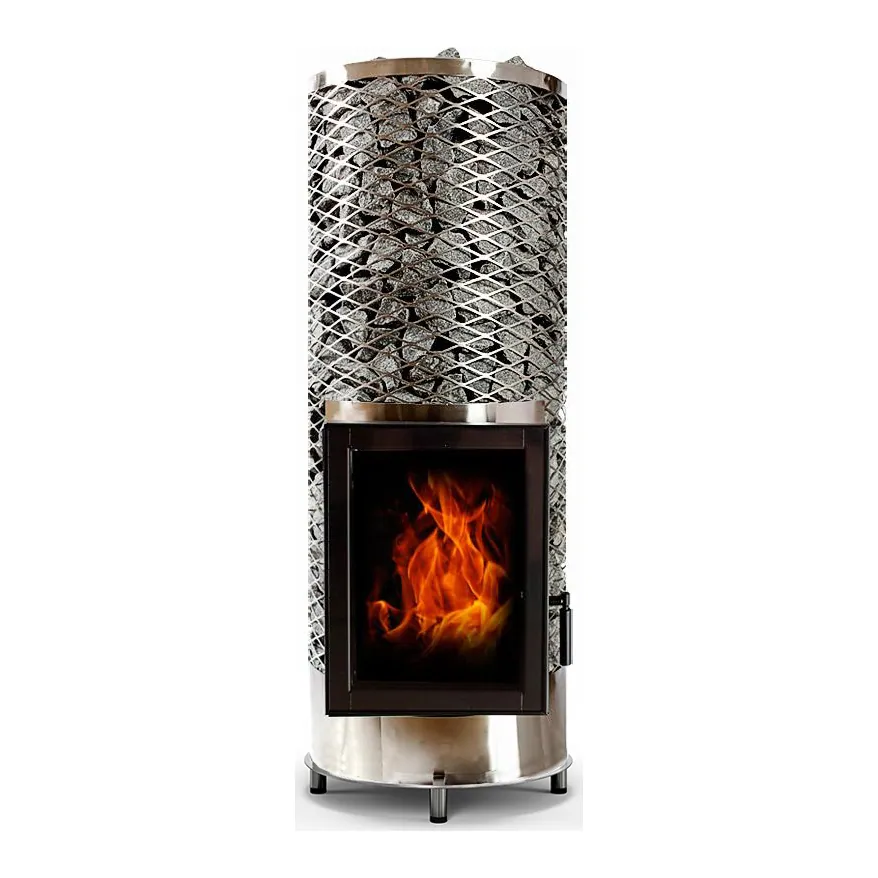

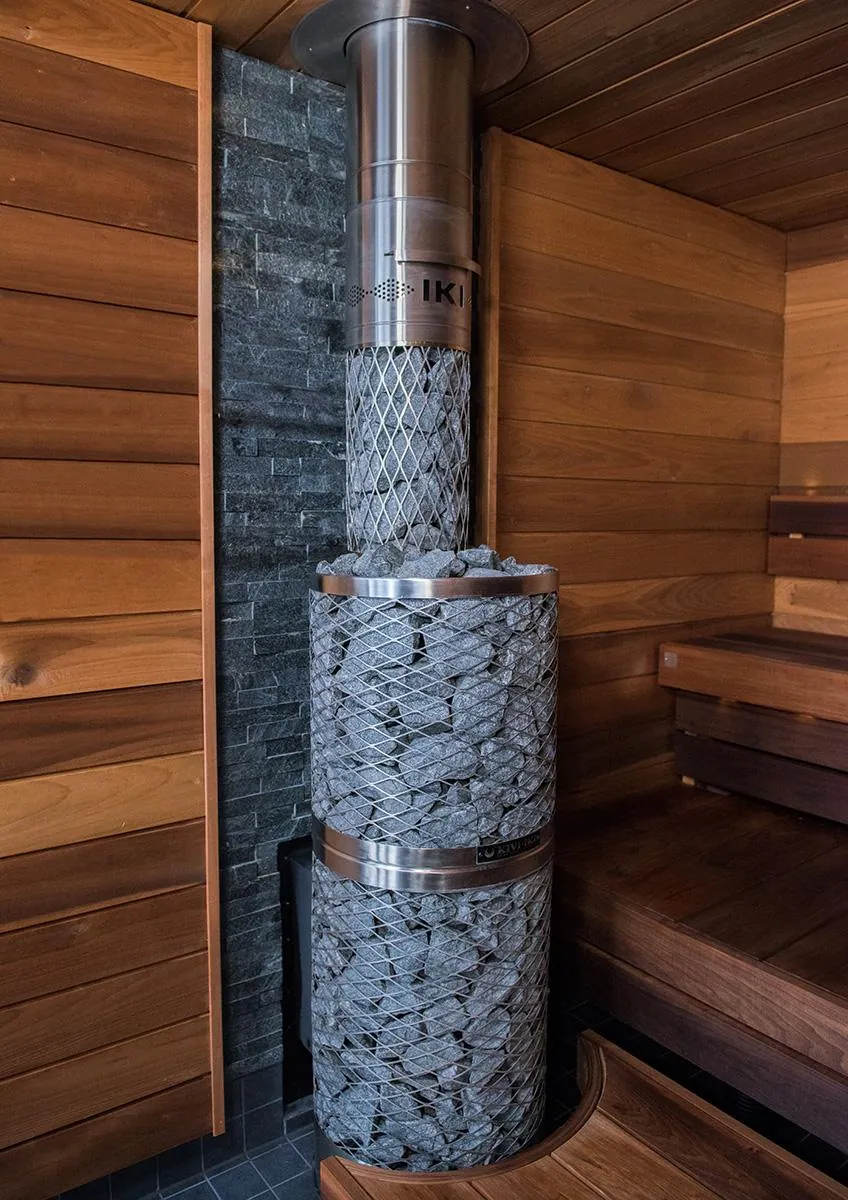

The KIVI-IKI Jr. stands in the sauna and suits rooms of 10–20 m³ (353–706 cu ft), holding up to 200 kg of stones in a mesh 48 cm across. The KIVI-IKI SL Fireplace passes through the wall: you load it from the dressing room, where the glass door works as a fireplace, and the sauna side holds 240 kg of stones for rooms of 15–25 m³ (530–883 cu ft).

The Jr. is 123 cm (48.4 in) tall and weighs 70 kg before stones; the SL Fireplace is 141 cm (55.5 in) tall and weighs 95 kg. Both have a 115 mm flue outlet and need a chimney, sold separately, as are the stones. IKI offers wall heat shields in black or stainless steel for the SL Fireplace. Every IKI stove is handmade in Finland.

Models compared

Every KIVI-IKI model side by side. Pick one to see its full specifications and add-ons.

KIVI-IKI Wood-Burning Sauna Stove: models compared
Model	Room size	Stones	Price (CAD)	Select
Jr.	353–706 cu ft (10–20 m³)	200 kg	$5,472.00
SL Fireplace	530–883 cu ft (15–25 m³)	240 kg	$6,144.00

Room sizes are the manufacturer’s ratings; glass, stone or log walls need more power, so check with the Heater Finder. Prices in CAD, before tax.

Specifications

Showing: Jr. Change

KIVI-IKI Wood-Burning Sauna Stove, Jr.: specifications
Recommended sauna size	353–706 cu ft (10–20 m³) IKI’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder.
Control	None needed (wood-burning)
Stones	About 200 kg (441 lb) of 5–10 cm stones, sold separately
Dimensions	Ø 480 × 1,230 mm (diameter × height); glass hatch 360 × 475 mm Ø 18.9 × 48.4 in (diameter × height); glass hatch 14.2 × 18.7 in
Weight	70 kg (154 lb)
Flue outlet	115 mm (4.5 in)
Clearances	Sides and back 250 mm (9.8 in) · ceiling 800 mm (31.5 in) Minimum distances to combustible surfaces, per the manufacturer.
Mounting	Floor or through-wall
Warranty	1-year warranty
Made in	Finland

KIVI-IKI Wood-Burning Sauna Stove, SL Fireplace: specifications
Recommended sauna size	530–883 cu ft (15–25 m³) IKI’s rating. Glass, stone or log walls need a bigger heater, so use the Heater Finder.
Control	None needed (wood-burning)
Stones	About 240 kg (529 lb) of 5–10 cm stones, sold separately
Dimensions	Ø 480 × 1,410 mm (diameter × height); glass hatch 360 × 475 mm Ø 18.9 × 55.5 in (diameter × height); glass hatch 14.2 × 18.7 in
Weight	95 kg (209 lb)
Flue outlet	115 mm (4.5 in)
Clearances	Sides and back 250 mm (9.8 in) · ceiling 800 mm (31.5 in) Minimum distances to combustible surfaces, per the manufacturer.
Mounting	Floor or through-wall
Good to know	Firebox passes through the wall; the glass hatch lights the room next door.
Warranty	1-year warranty
Made in	Finland

What you need to install it

Needs a chimney kit matched to the 115 mm flue outlet, installed to the chimney maker's instructions. Many home insurers ask for a WETT inspection, so book one before the first fire.
IKI lists 250 mm (9.8 in) from the stone-filled mesh to the sides and back, 300 mm (11.8 in) from the furnace, 500 mm (19.7 in) in front of the glass door and 800 mm (31.5 in) above the stones.
The SL Fireplace passes through a wall up to 150 mm thick, in an opening 345 × 630 mm, with heat shields (sold separately) around it on both sides; a log wall needs a non-combustible shield around the fireplace, per IKI.
Set the stove on concrete or stone, or on a protective base such as IKI's stove base. IKI recommends one fire before loading the stones, outdoors or in a well-ventilated space, to burn off protective oils.

Stones: Holds up to 200 kg (441 lb) in the Jr. or 240 kg (529 lb) in the SL Fireplace; IKI recommends rough olivine, olivine-dolerite or peridotite stones under 10 cm. Sold separately.

Documents

Manuals and spec sheets from IKI.

Documents are hosted by IKI and can change without notice; your electrician or installer works from the manual that ships with the product. Need a document in another format? Ask us.

KIVI-IKI questions

Jr. or SL Fireplace: which fits my sauna?

The Jr. stands inside the sauna and suits 10–20 m³ (353–706 cu ft). The SL Fireplace passes through the wall for 15–25 m³ (530–883 cu ft) saunas: you load it from the dressing room, where its glass door becomes a fireplace, and the sauna stays free of wood chips.

Does the glass door light up the sauna?

Yes, that's the idea behind KIVI-IKI. On the Jr., the 36 × 47.5 cm glass door faces into the sauna. On the SL Fireplace, it faces the dressing room and lights that space instead.

What wall does the SL Fireplace need?

IKI allows a wall up to 150 mm thick, with an opening 345 mm wide and 630 mm high and heat shields (sold separately) around it on both sides. Through a log wall, a non-combustible shield must surround the fireplace. Keep 300 mm from the opening to any combustible wall surface.

What stones should I use?

Rough olivine, olivine-dolerite or peridotite stones under 10 cm across, laid loosely so air can flow and covering all the metal parts. The Jr. takes up to 200 kg and the SL Fireplace 240 kg.
